RED BAKELITE

SWITCHPLATE COVERS

SWITCHES - OUTLETS - RECEPTACLES

all sizes & combinations now available in red

THE SINGLE PLATE ABOVE IS A

GOOD SAMPLE OF THE COLOUR OF ALL RED

COLOURS CAN APPEAR DIFFERENT
BUT IT IS ONLY THE VARIATION IN
PHOTOGRAPHY LIGHTING

SWITCH PLATE COVERS BELOW

CODE - M20RC - - US $7. 80

SINGLE RED

SWITCH PLATE COVER

( standard dirnsions )

4-3/8" ( 111mm ) High

4-3/8" ( 111mm ) Wide

The holes are 2-5/16" ( 60mm ) apart

CODE - M21RC - - US$ 10.00


2 GANG ( double ) RED

SWITCH PLATE COVER

( standard dirnsions )

4-3/8" ( 111mm ) High

4-5/16" ( 110mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apar

CODE - M22RC - - US$ 10. 60

5 GANG ( triple) RED

SWITCH PLATE COVER

( standard dirnsions )

4-5/16" ( 110mm ) High

6-1/4" ( 158mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart

CODE - M25RC - - US$ 10. 00


SINGLE RED

RECEPTACLE COVER

( standard dirnsions )

4-5/16" ( 110mm ) High

4-3/8" ( 112mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart


SUBSTITUTE MOTTLE RED
PLATE FOR RED

correct picture coming

CODE - M26RC - - US$ 11. 15

RED DOUBLE

RECEPTACLE COVER

( standard dirnsions )

4-5/16" ( 110mm ) High

8-1/16" ( 210mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart

***

WAYS OF FIXING SWITCHES & RECEPTACLES

BELOW

DECO WALL BOXES

for fixing to wall studs

These wall boxes are the easiest way of
installing the Deco Switch Range if the
wall cladding hasn't yet been put on.
They can be srewed or nailed to wall studs
or are ideal for brick or concrete walls.

CODE - - DEBOX1 - - 1 GANG - - US$ 4. 25
CODE - - DEBOX2 - - 2GANG - - US$ 9. 75
CODE - - DEBOX3 - - 3GANG - - US$ 14. 85
CODE - - DEBOX4 - - 4GANG - - US$ 21. 40

DECO MOUNTING STRIPS

FOR EASE OF MOUNTING
TO EXISTING WALLS

The strip is inserted through thr hole and glued
to the back of the wall cladding ( eg. plaster ).
The toggle switches or receptacles are then fixed
with the bolt going through the wall cladding
and screwing to the plate behind.
A paper stencil ,
shown below makes this job easier

CODE - - DESTR1P1 - - 1 GANG - - US$ 3. 25
CODE - - DESTR1P2 - - 2GANG - - US$ 5. 00
CODE - - DESTR1P3 - - 3GANG - - US$ 7. 00
CODE - - DESTR1P4 - - 4GANG - - US$ 9. 30

WOODBLOCKS FOR MOUNTING DECO
SWITCHES & RECEPTACLES
to wall surface

With wood screws close to the inner edges so that the plates cover them the block is fixed to the wall.
The switces and receptacles are then wired up and
screwed onto the block with the aid of the
paper template shown below.
The cover plate is then screwed on with the small
chrome, or dark antique bronze bolts supplied

CODE - - DEBLOCK1 - - 1 GANG -- US$ 11. 35
CODE - - DEBLOCK2 - - 2GANG -- US$ 13. 00
CODE - - DEBLOCK3 - - 3GANG - - US$ 13. 80
CODE - - DEBLOCK4 - - 4GANG - - US$ 14. 60

FOR EASE OF MOUNTING, A PAPER STENCIL TRUE TO SIZE
in all the sizes
CAN BE INCLUDED WITH ORDER

2 horizontal pieces of timber 2-7/8"(74mm)
apart are inserted between two vertical
wall studs before the wall cladding is put on.
A pointy scriber is pushed through the crosses of the diagram to enable the toggle switches or receptacles to be screwed down.
The cover plate is then fixed with supplied
screws to the toggle switches or receptacles.

***

SINGLE SWITCHES WITH CHOICE OF TOGGLES
BELOW

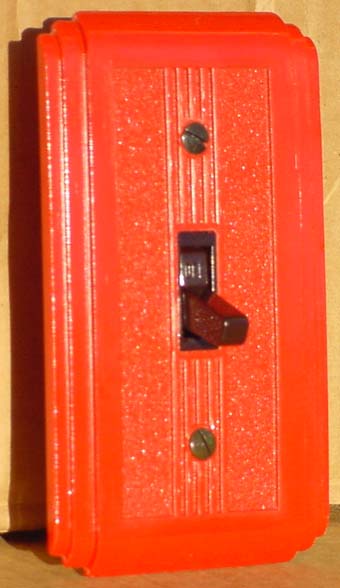

CODE - M20RUBR - US$ 20.00

SINGLE RED
SWITCH

BROWN USA
TOGGLE SWITCH

DECO BOX
without switch
CODE - - DEBOX1 - US$ 4. 25



DECO BLOCK

CODE - - DEBLOCK1 - US$ 11. 35



CODE -M20RUBL - US $ 20.00

SINGLE RED
SWITCH

BLACK USA
TOGGLE SWITCH

correct picture coming

includes

BLACK USA
TOGGLE SWITCHES

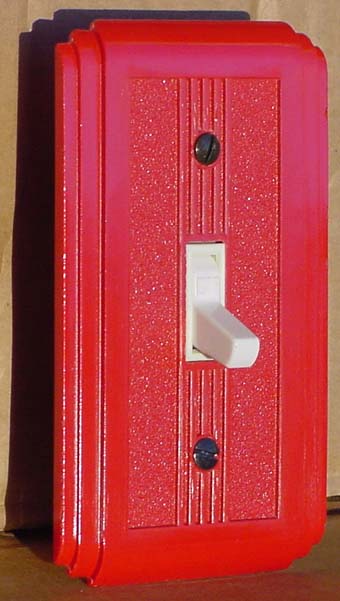

CODE - M20RUW - US$ 20.00

SINGLE RED
SWITCH

WHITE USA
TOGGLE SWITCH

( standard dirnsions )

**

DECO BLOCK

CODE - - DEBLOCK1 - US$ 11. 35

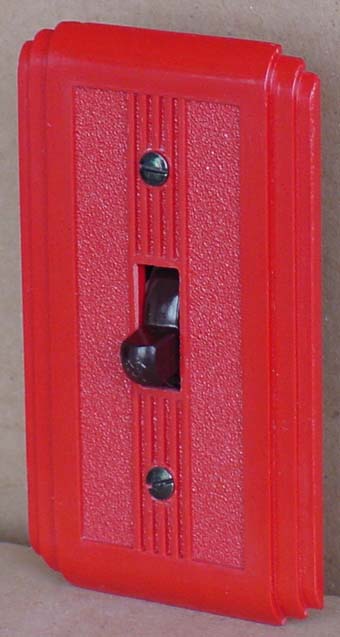

CODE - M20RBR - US$ 20.00

SINGLE RED
SWITCH

BROWN BAKELITE
TOGGLE SWITCH

( standard dirnsions )



DECO BLOCK

CODE - - DEBLOCK1 - US$ 11. 35

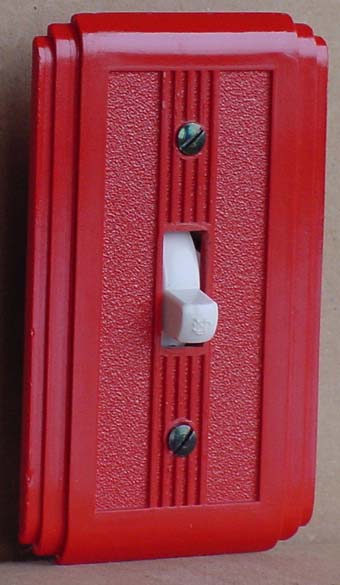

CODE - M20RW - US$ 20.00

SINGLE RED
SWITCH

WHITE BAKELITE
TOGGLE SWITCH

( standard dirnsions )



DECO BLOCK

CODE - - DEBLOCK1 - US$ 11. 35







***

DOUBLE SWITCHES WITH CHOICE OF TOGGLES
BELOW



CODE - M21RUBR - US$ 31. 50

DOUBLE ( 2gang )
RED SWITCH

BROWN USA
TOGGLE SWITCHES

( standard dirnsions )

correct picture coming


DECO BLOCK

CODE - - DEBLOCK2 - US$ 13. 00

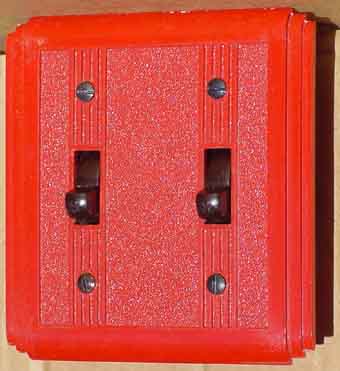

CODE - M21RUBL - US$ 31. 50

DOUBLE ( 2gang )
RED SWITCH

BLACK USA
TOGGLE SWITCHES

( standard dirnsions )



includes

BLACK USA
TOGGLE SWITCHES

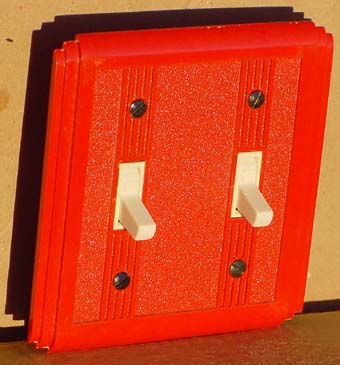

CODE - M21RUI - US$ 31. 50

DOUBLE ( 2gang )
RED SWITCH

WHITE USA
TOGGLE SWITCHES

( standard dirnsions )



**

DECO BOX
without switches
CODE - - DEBOX2 - US$ 9. 55



DECO BLOCK

CODE - - DEBLOCK2 - US$ 13. 00

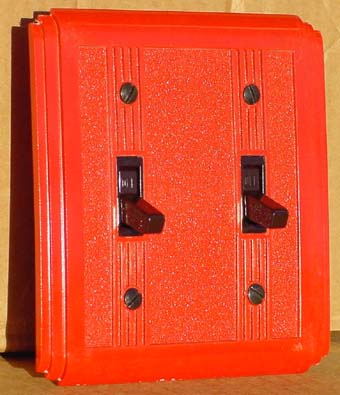

CODE - - M21R - US$ 31. 50

DOUBLE ( 2gang )
RED SWITCH

BROWN BAKELITE
TOGGLE SWITCHES

( standard dirnsions )



DECO BLOCK

CODE - - DEBLOCK2 - US$ 13. 00

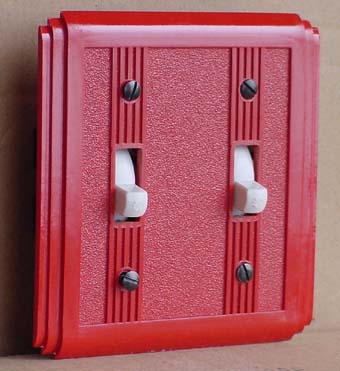

CODE - M21R - US$ 31. 50

DOUBLE ( 2gang )
RED SWITCH

WHITE BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

DECO BOX
without switch & receptacle
CODE - - DEBOX2 - US$ 9. 75




***

TRIPLE SWITCHES WITH CHOICE OF TOGGLES
BELOW


CODE - M22RUBR - US$ 45. 00

TRIPLE ( 3 gang )
RED SWITCH

BROWN USA
TOGGLE SWITCHES

COLORS CAN APPEAR DIFFERENT
BUT IT IS ONLY THE VARIATION IN
PHOTOGRAPHY LIGHTING

( standard dirnsions )



DECO BLOCK
without switches
CODE - DEBLOCK3 -- US$ 13. 80


DECO BOX
without switches
CODE - - DEBOX3 - US$ 10. 60

CODE - M22RUBL - US$ 45.00

TRIPLE ( 3 gang )
RED SWITCH

BLACK USA
TOGGLE SWITCHES

( standard dirnsions )




DECO BLOCK
without switches
CODE - DEBLOCK3 -- US$ 13. 80


DECO BOX
without switches
CODE - - DEBOX3 - US$ 10. 60

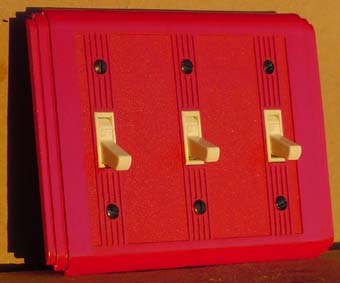

CODE - M22RUW - US $ 45.00

TRIPLE ( 3 gang )
RED SWITCH

WHITE USA
TOGGLE SWITCHES

COLORS CAN APPEAR DIFFERENT
BUT IT IS ONLY THE
VARIATION IN
PHOTOGRAPHY LIGHTING

( standard dirnsions )

DECO MOUNTING STRIPS 2
CODE - - DESTR1P3 - - US$ 7. 00

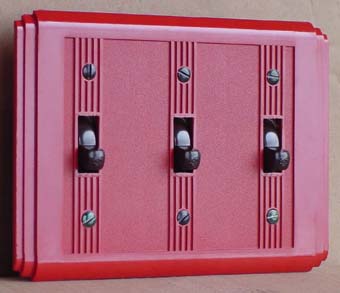

CODE -M22RBR - - US$45.00

TRIPLE ( 3 gang )
RED SWITCH

BROWN BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

**

DECO BLOCK
without switches
CODE - DEBLOCK3 -- US$ 13. 80

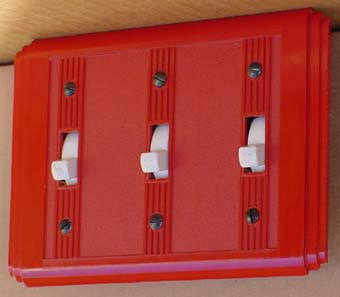

CODE -M22RW - US$45.00

TRIPLE ( 3 gang )
RED SWITCH

WHITE BAKELITE
TOGGLE SWITCHES

( standard dirnsions )



DECO BOX
without switches
CODE - - DEBOX3 - US$ 14. 85

***

INFO ON RECEPTACLES BELOW

Often it can be convenient to have a a switch in conjunction with a receptacle.

In this case the live wire goes to the switch first and comes out of the 2nd switch terminal

to go to the receptacle. For convenience and safety the switch is used

to turn the appliance or lamp on or off.

Otherwise the receptacle can be wired in the normal way and the switch can be used as

a separate light switch.


SINGLE RECEPTACLES BELOW


CODE - M25RUBR - US$ 31. 50

RED
RECEPTACLE

* BROWN USA RECEPTACLE

* BROWN USA TOGGLE SWITCH

( standard dirnsions )

**



DECO BLOCK
without sw & receptacles
CODE - DEBLOCK2 -- US$ 13. 00




CODE - M25RUBL - US$ 31. 50

RED
RECEPTACLE

* BLACK USA RECEPTACLE

* BLACK USA TOGGLE SWITCH

( standard dirnsions )

**



DECO BLOCK
without sw & receptacles
CODE - DEBLOCK2 -- US$ 13. 00

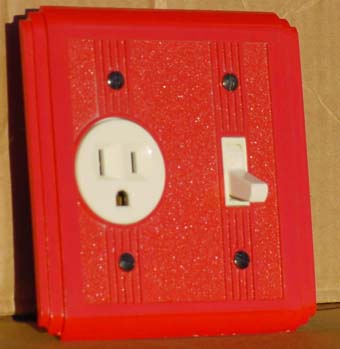

CODE - M25RUW - US$ 31. 50

RED
RECEPTACLE

* WHITE USA RECEPTACLE

* WHITE USA TOGGLE SWITCHES

( standard dirnsions )


DECO BOX
without switch & receptacle
CODE - - DEBOX2 - US$ 9. 55



DECO BLOCK
without switch & receptacle
CODE - DEBLOCK2 -- US$ 13. 00

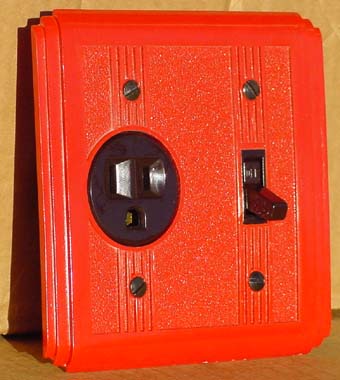

SUBSTITUTE
BROWN PLATE FOR RED

CODE - M25RUBR - US$ 31. 50

RED
RECEPTACLE

* BROWN USA RECEPTACLE

* BROWN BAKELITE TOGGLE SWITCH

( standard dirnsions )

correct picture coming







DECO BLOCK
without switch & receptacle
CODE - DEBLOCK2 -- US$ 13. 00

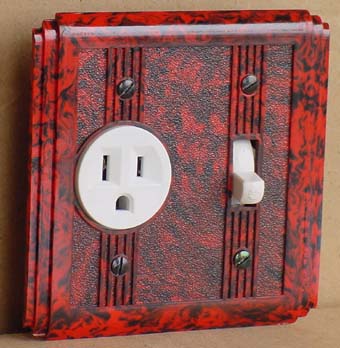

SUBSTITUTE MOTTLE RED
PLATE FOR RED

CODE - M25RWUW - US$ 31. 50

RED
RECEPTACLE

* WHITE USA RECEPTACLE

* WHITE BAKELITE TOGGLE SWITCH

( standard dirnsions )



DECO BLOCK
without switch & receptacle
CODE - DEBLOCK2 -- US$ 13. 00


***

DOUBLE RECEPTACLE BELOW



SUBSTITUTE MOTTLE RED
PLATE FOR RED

CODE - M26RUBR - - US$ 52. 50

DOUBLE RED
RECEPTACLE

* BROWN USA RECEPTACLES

* BROWN USA TOGGLE SWITCHES

( standard dirnsions )

correct picture coming

**



DECO BOX
without switches & receptacles
ITEM NO - - DEBOX4 - US$ 11. 15



SUBSTITUTE MOTTLE RED
PLATE FOR RED

CODE - M26RUBL - - US$ 52. 50

DOUBLE RED
RECEPTACLE

* BLACK USA RECEPTACLES

* BLACK USA TOGGLE SWITCHES

( standard dirnsions )

correct picture coming

**

includes

BLACK USA
TOGGLE SWITCHES


SUBSTITUTE MOTTLE RED
PLATE FOR RED

CODE - M26RUI - US$ 52. 50



DOUBLE RED
RECEPTACLE

* IVORY USA RECEPTACLE

* IVORY USA TOGGLE SWITCHES

( standard dirnsions )

correct picture coming

**

DECO BOX
without switches & receptacles
ITEM NO - - DEBOX4 - US$ 11. 15

DECO BLOCK
without switches & receptacles
CODE - DEBLOCK4 -- US$ 14. 60




SUBSTITUTE MOTTLE RED
PLATE FOR RED

CODE - M26RUBR - - US$ 52. 50

DOUBLE RED
RECEPTACLE

* BROWN USA RECEPTACLES

* BROWN BAKELITE TOGGLE SWITCHES

( standard dirnsions )

correct picture coming


**

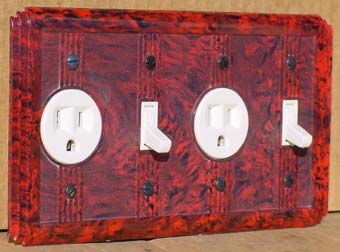

SUBSTITUTE MOTTLE RED
PLATE FOR RED

CODE - M26RWUW - - US$ 52. 50

DOUBLE RED
RECEPTACLE

* WHITE USA RECEPTACLES

* WHITE BAKELITE TOGGLE SWITCHES

( standard dirnsions )

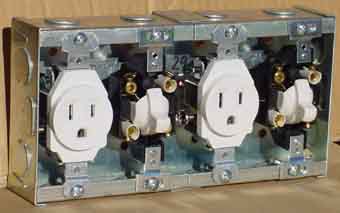

DECO BOX
without switches & receptacles
ITEM NO - - DEBOX4 - US$ 21. 40


***
